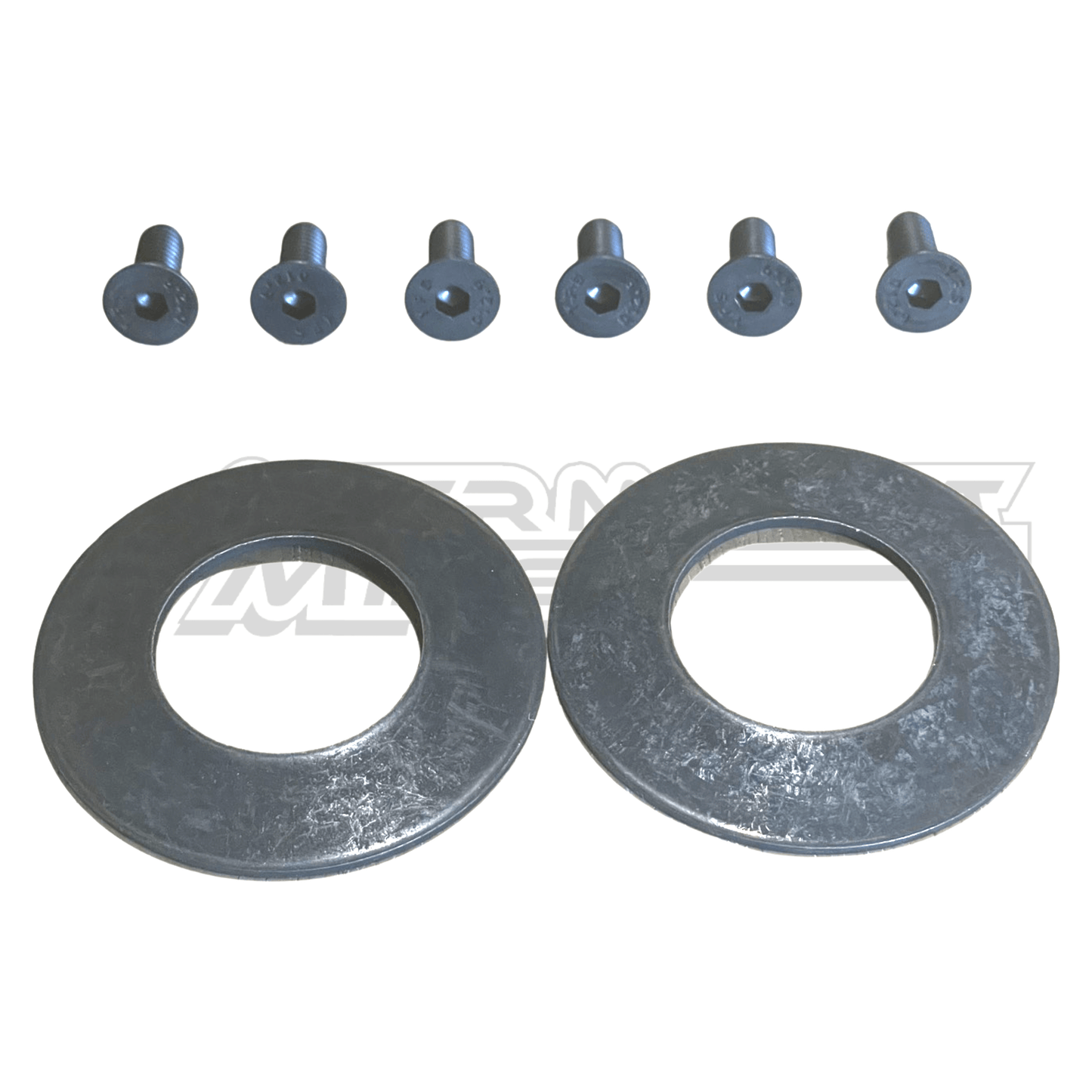

50cc Clutch Belleville Washers with Screws

Built into the KTM 50, Gas Gas MC 50 and Husqvarna TC50 clutch assembly is a cushioning system designed to soften the hard hit when engaging at high RPM’s. This cushioning system consists of two opposing conical spring washers between the gear and Fit Bolt Plate. When the clutch engages the conical spring washers compress and take away the initial hard hit. KTM did this to avoid excessive stress to the clutch hub and gear, many of you might remember the issues years ago with the 50cc hubs breaking from the lack of a cushioning system.
When the clutch gets hot the conical spring washers can weaken that will cause excessive slip. Until now the only way to fix the weak conical spring washers was to purchase an entire new assembly at almost $700.00. Intuitive Racing has designed thicker and stronger conical spring washers made from high quality steel that will not sack out when exposed to heat like the thin factory spring washers. Installation is simple, just disassemble the clutch and replace the conical spring washers with the new stronger and thicker conical spring washers. Your clutch will come back to life with full lock up while still maintaining the cushioning effect.
Features
Made from high quality spring steel to exacting standards
Thicker and 23% stronger than the factory KTM Washers
Improves performance
Better lock up

Includes

2x Conical Spring Washers

12 replacement screws
Instructions

Gas Gas

• MC 50 2021+

Husqvarna

• TC 50 Mini 2017-2023
• TC 50 2017+

KTM

• 50 SX Mini 2009-2023
• 50 SX 2009+
• 50 SXS 2012-2014
• 50 SX FE 2023+
